如何将SAP C4C TI页面的值传递到Embedded Component里去

简介:

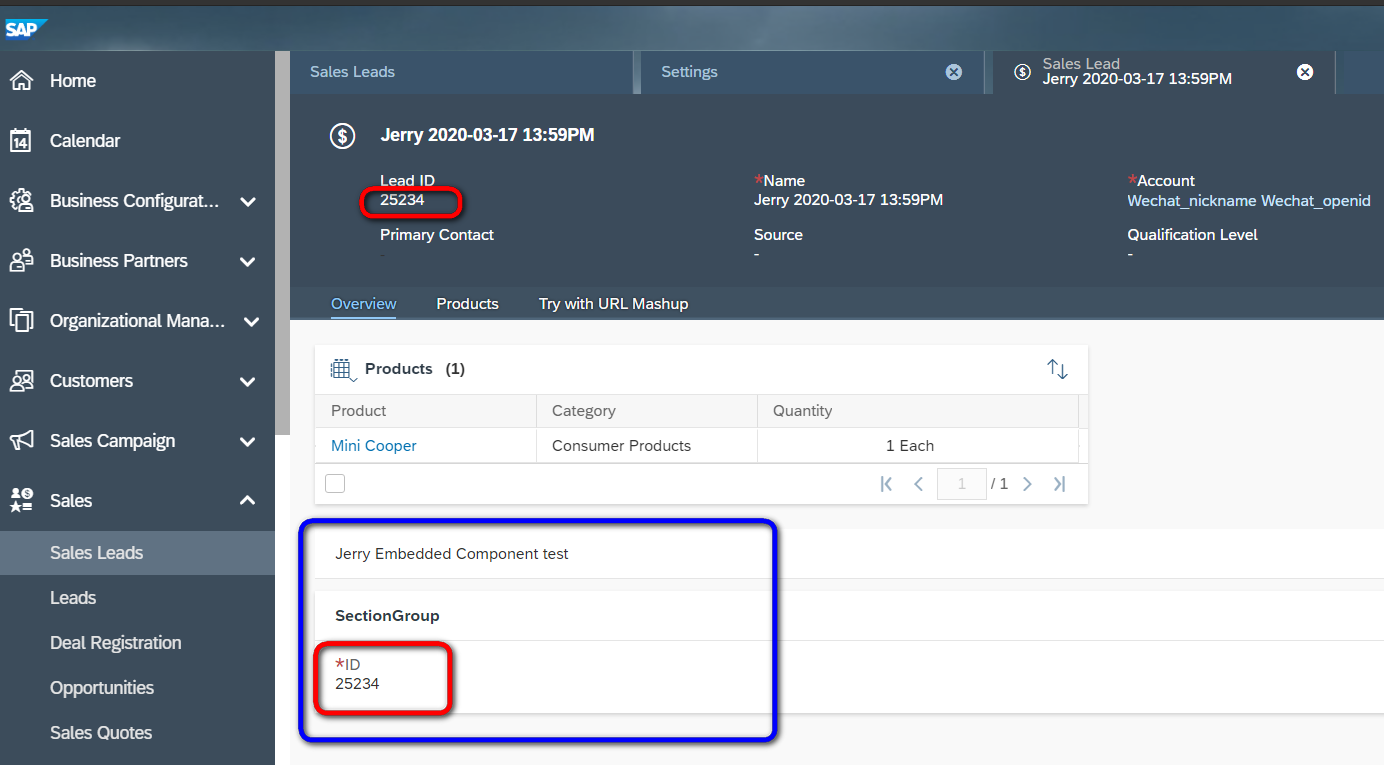

先看最后达到的效果,下图蓝色矩形框是我自开发的UI,里面的ID 25234来自C4C标准的Lead UI里的Lead ID。这个值是如何从Lead Thing Inspector UI传递到Embedded Component的input field里的呢?

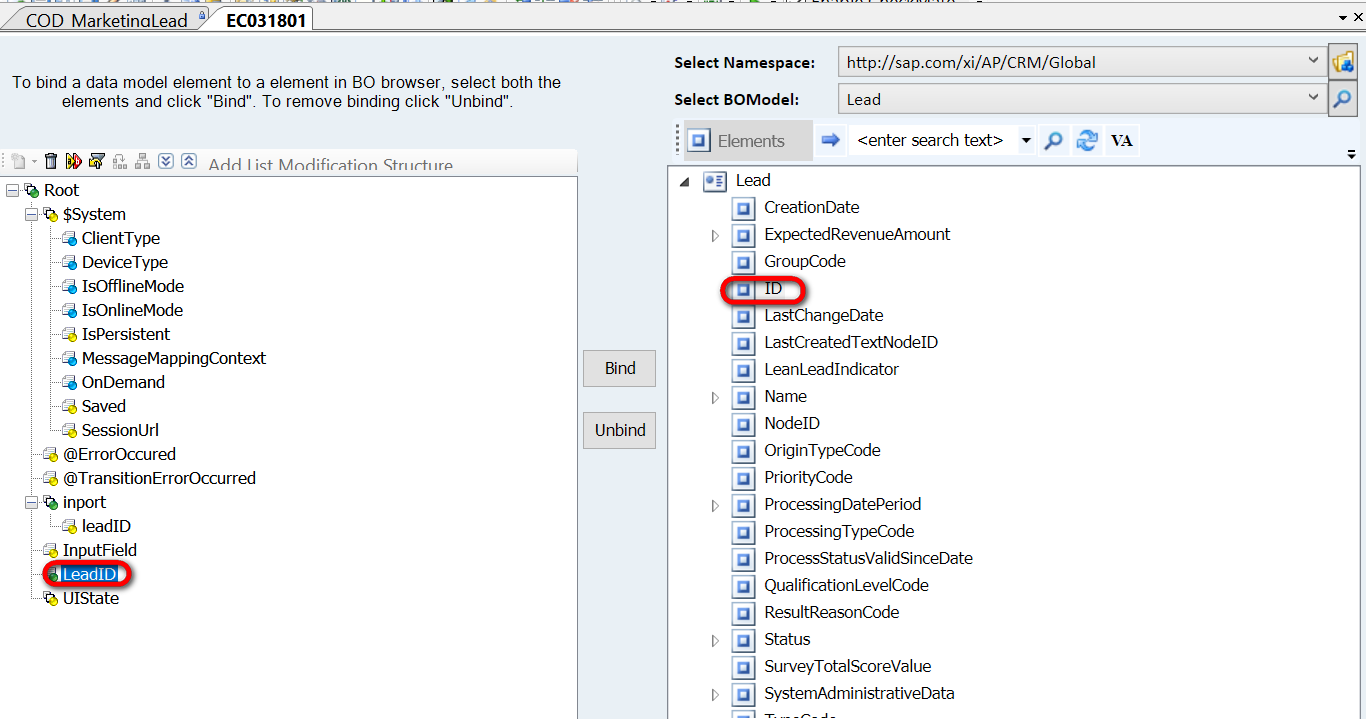

新建一个Embedded Component,data model标签页里,选择Lead这个标准的BO. 创建一个Data field LeadID,将其和BO字段ID绑定。

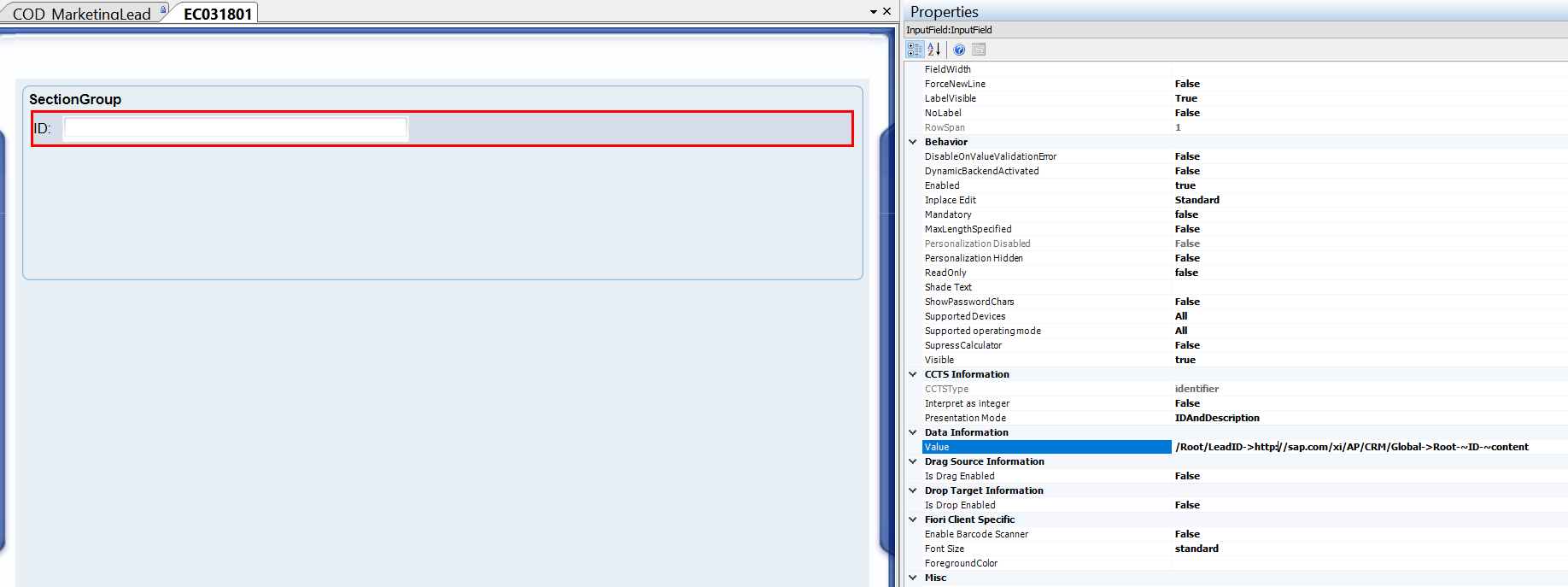

新建一个input field,其值绑定到data field LeadID上。

剩下的问题是这个Embedded Component运行时,LeadID如何被赋以对应的值。

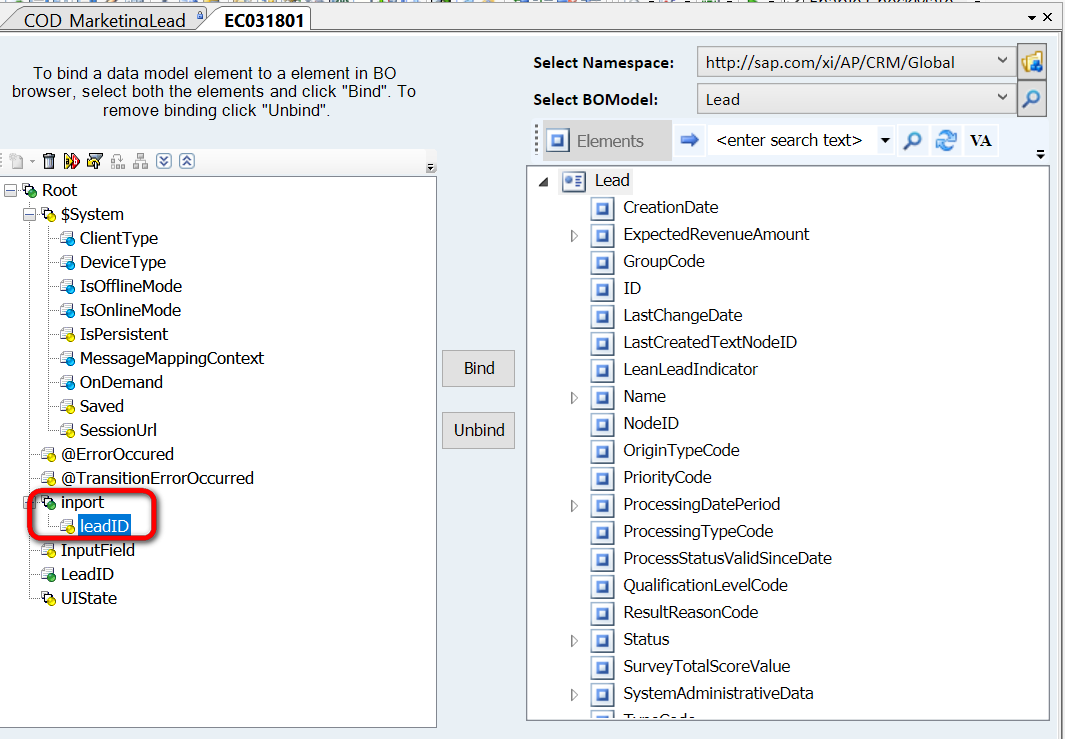

另外新建一个data field leadID,不对其做绑定。

新建一个inport,取名fromLead, 创建一个参数ObjectID, 这个名称可以随便取。ParameterBinding, 选择将其绑定到/Root/inport/leadID上。

RequestFireOnInitialization设置为true,onFire属性需要为其绑定一个event handler:

创建一个event handler,取名readLead,明细如下:

最后将该Embedded Component添加到Sales Lead TI页面时,将TI页面的outport里的参数SalesLeadID同Embedded Component inport的参数ObjectID绑定即可。

本文来自云栖社区合作伙伴“汪子熙”,了解相关信息可以关注微信公众号"汪子熙"。
